S-LINE LINEAR TRUNKING SYSTEM
Choose your product version

35W ON/OFF

50W ON/OFF

70W ON/OFF

100W ON/OFF

150W ON/OFF

35W DALI

50W DALI

70W DALI

100W DALI

150W DALI



S-LINE LINEAR TRUNKING SYSTEM | 35W ON/OFF
Product benefits
- 1500mm - 20W / 25W / 30W / 35W DIP switch driver AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 50W ON/OFF
Product benefits
- 1500mm - 35W / 40W / 45W / 50W DIP switch driver AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Maximum total power up to 3500W per power continuous line
S-LINE LINEAR TRUNKING SYSTEM | 70W ON/OFF
Product benefits
- 1500mm - 55W / 60W / 65W / 70W DIP switch driver AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 100W ON/OFF
Product benefits
- 1500mm - 70W / 80W / 90W / 100W DIP switch driver AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 150W ON/OFF
Product benefits
- 2250mm/2400mm - 70W / 90W / 110W / 130W / 150W DIP switch driver AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free for installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Track spotlight module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 35W DALI
Product benefits
- 1500mm - 35W DALI2.0 DT6 AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 50W DALI
Product benefits
- 1500mm - 50W DALI2.0 DT6 AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 70W DALI
Product benefits
- 1500mm - 70W DALI2.0 DT6 AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 100W DALI
Product benefits
- 1500mm - 100W DALI2.0 DT6 AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
S-LINE LINEAR TRUNKING SYSTEM | 150W DALI
Product benefits
- 2250mm/2400mm - 150W DALI2.0 DT6 AC220-240V
- 190LM per watt energy saving and cost -effective
- Pre-wired trunking rail, plug & play, tool-free installation
- L , T , X node connector
- Sharp / narrow / wide / flood / flat / asymmetric / double asymmetric
- 2700K / 3000K / 3500K / 4000K / 5000K / 5700K / 6500K
- Emergency, Track spotlight module, Sensor module, Exit sign module
- Cord / chain / rod / surface mounted / mounting clip
- Total power up to 3500W per line
VIDEO DEMONSTRATION
Learn more details about the structure and functions of the S-Line LED linear trunking system through the following video
Browse the following components details and discover the comprehensive solutions the S-line brings
TECHNICAL DATA
VALUE
Luminaire colour

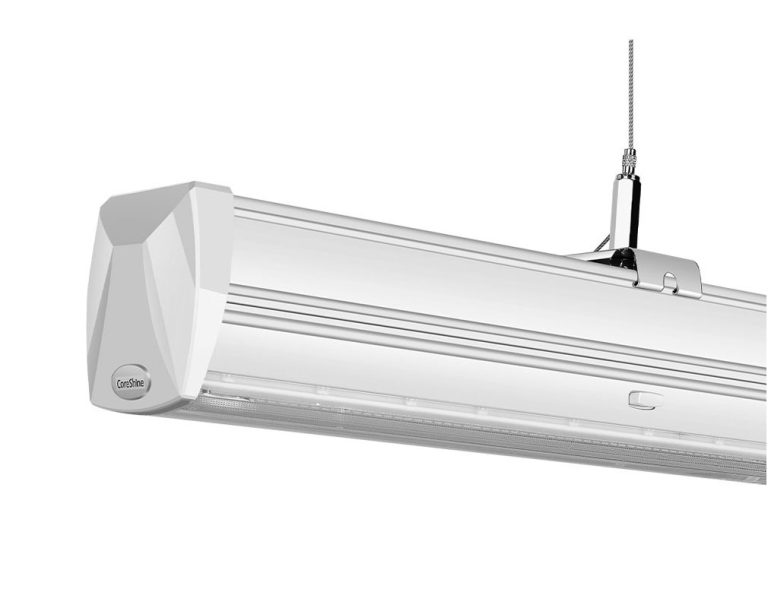

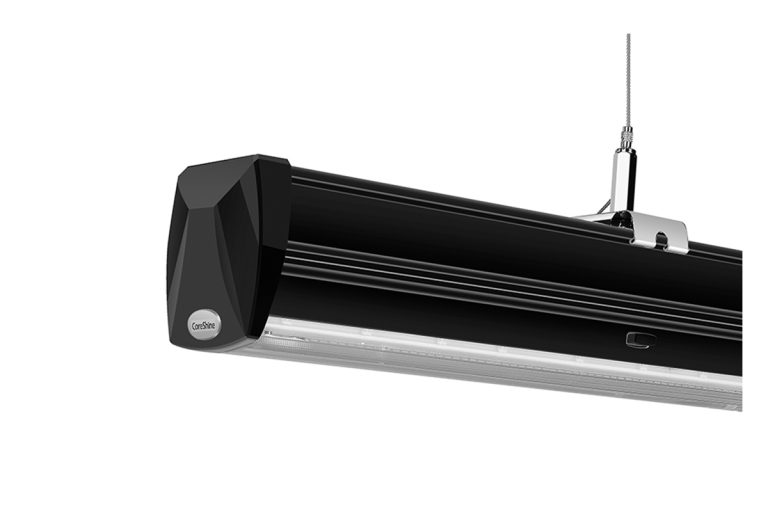

RAL9016 White,RAL9017 Black
Outer Dimension
L1500 * W70 * H76mm / L2400 * W70 * H76mm
Input Power
20-35W, 35-50W, 55-70W ( @ L1500mm, 5W/Gear )
70-100W ( @ L2400mm, 10W/Gear )
Input Voltage
220-240V
PF ( @230V, 50Hz, full load )
0.95
Luminous Efficacy
195lm/W
CCT
2700 / 3000 / 4000 / 5000 / 6000 / 6500K
CRI
>80Ra or >90Ra
SDCM
<3
Light Distribution Curve
SP-30°,NR-60°,WD-90°,FD-120°,L/R Asymmetric,DS-Double Asymmetric,FF-120° PC Diffuser
Function
on/off,DALI 2.0,1-10V
IP Level
IP40
Ambient Temperature Ta ( @life time 50,000 h)
-25 ~ 40°
Rated Life L80/B50 @25°C
100,000 hrs
Warranty
5 years


APPLICATION CASES
S-Line has been widely used in Supermarket, Warehouse, Workshop, Car Showroom, Data Center etc... Applications, Check some of real cases.
